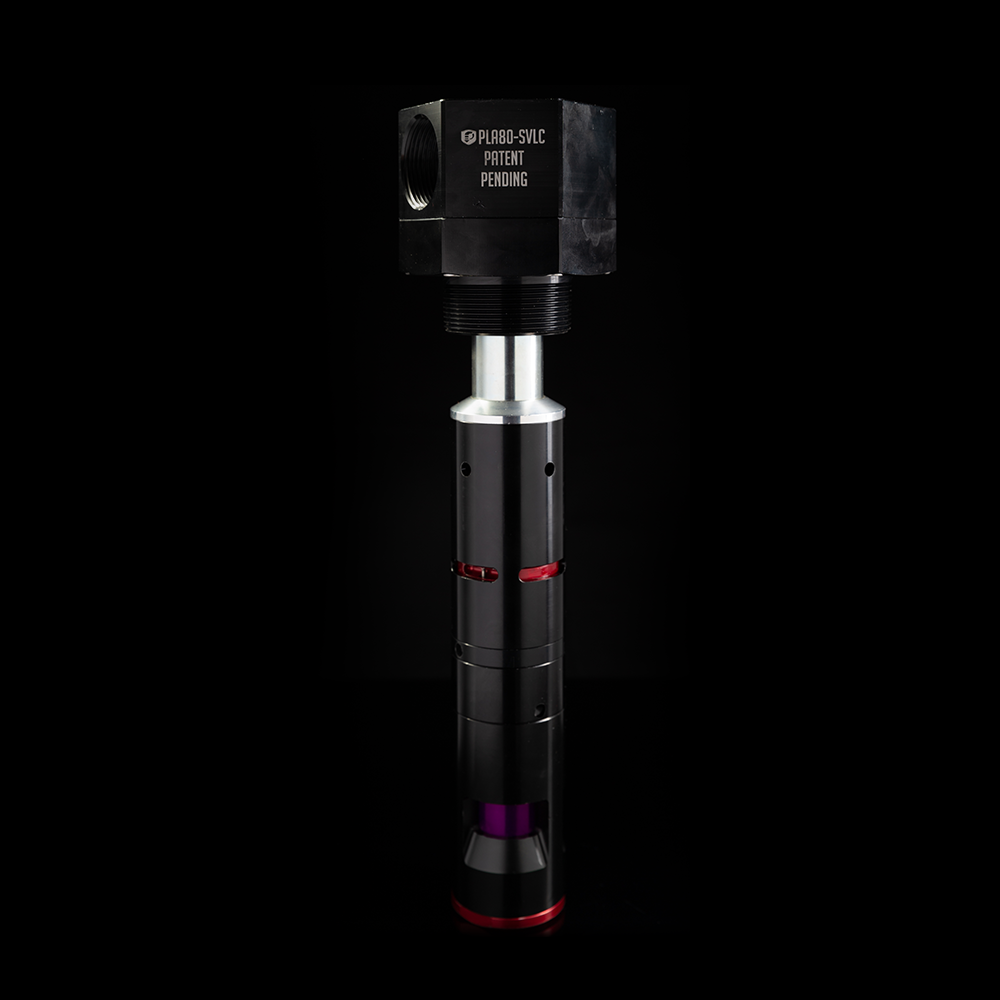

PLA80 SVLC - Top Fill Pressureless System for Fuel and Oils

The PLA80 is an "all-in-one" drop-down tube that fits standard 2" NPT inlets. It eliminates the need for pressurized tanks or splash filling adapters, while simultaneously addressing the common problems of under/over filling multiple tanks in daisy-chain configurations. With the PLA80 installed, each tank will shutoff independently once the fuel level reaches 90-95% capacity. Automatic shutoff works with all standard fuel nozzles (up to 40 gpm) and with highflow fuel nozzles (up to 80 GPM). This product is ideal for agriculture, small construction, oil extraction and mass transit equipment because of its compact nature and ease of installation.

FEATURES

o Fills and vents through the same unit TANK PORT TECHNICAL SPECIFICATIONS

o Completely pressureless operation

o Automatic independent tank shutoff HIGH-FLOW FUEL NOZZLE STANDARD FUEL NOZZLE

o Remote receiver mounting MAX: 80 GPM (302 LPM) MAX: 40 GPM (151 LPM)

o Remote or direct filter vent mounting

o 1-1/4" FNPT fuel inlet threads

MIN: 40 GPM (151 LPM) MIN: 20 GPM (94.5 LPM)

o 1" FNPT vent port threads Minimum shutoff flow rate: 20 GPM per PLA80

o Standard weight: 3.92 lbs 11.78 kg
