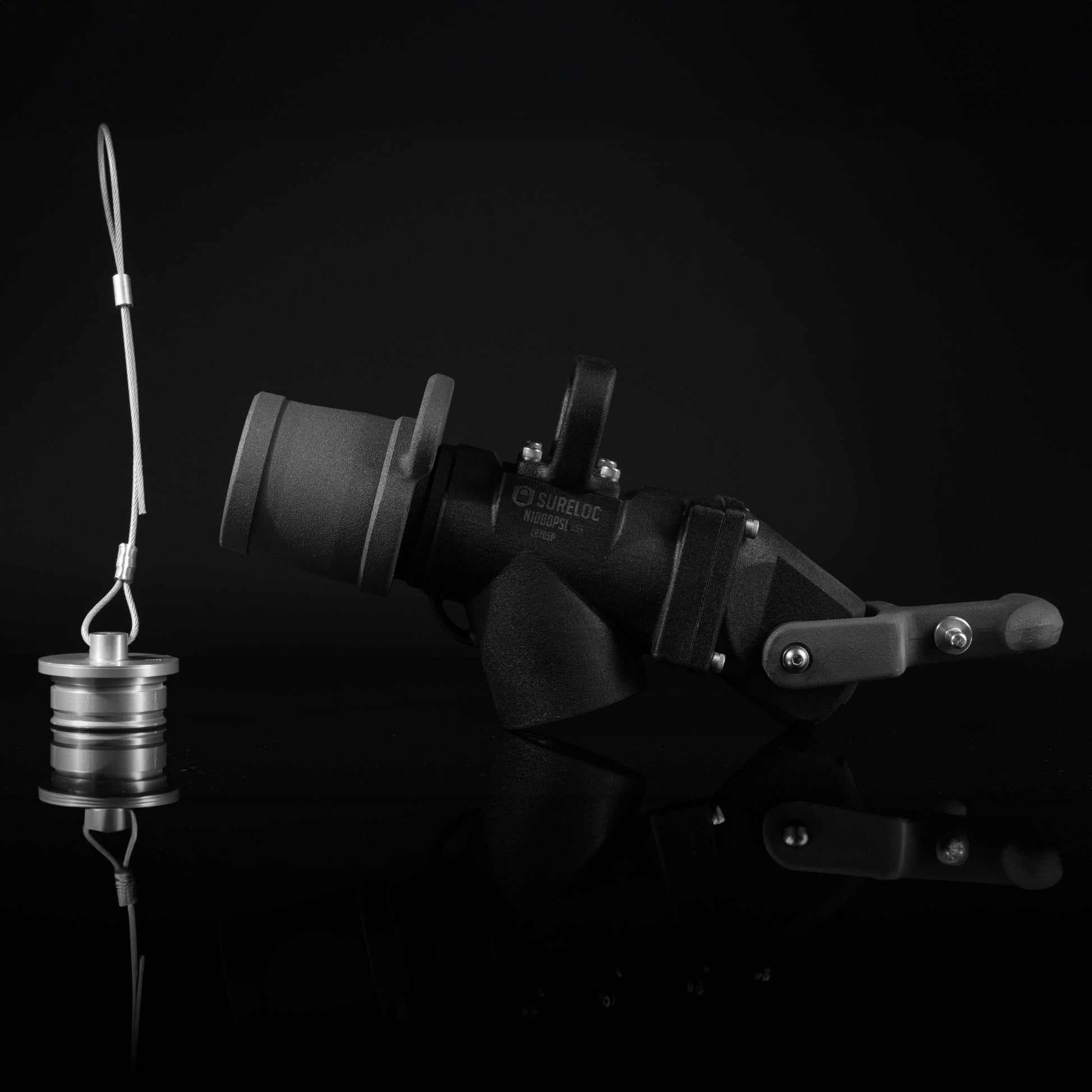

High Flow 1000 LPM Fueling Nozzle | N1000PSLp

The N1000PSLp is Fast Fill Systems highest-capacity fueling nozzle, rated for flow rates up to 1000 LPM (264 GPM) -- nearly double the output of standard 150 GPM nozzles. Its thick-wall, all-metal exterior is built to withstand the punishment of high-volume fleet refueling operations. Twelve stainless steel ball bearings ensure a secure, positive latch, and the standard 2 NPT inlet makes it a straightforward retrofit for most existing fuel systems. Must be used with the PLA1000 pressureless system.

• Highest flow rate nozzle in the Fast Fill Systems lineup
• Thick-wall, all-metal exterior for maximum durability
• 12 stainless steel ball bearing latching mechanism
• 2 NPT inlet for easy retrofit
• Powder-coated non-slip grip

Technical Specs: Max Operating Pressure: 8.6 BAR / 125 PSI | Max Flow Rate: 264 GPM (1000 LPM) | Min Flow Rate: 150 GPM (567 LPM) | Fuel Inlet Threads: 2 NPT | Weight: 6.8 LBS (3.1 KG)

Note: The N1000PSLp must be paired with the PLA1000-M pressureless system to achieve the 1000 LPM flow rate.

Equipment Compatibility: Fits standard fast-fill receiver installations on CAT, Komatsu, Volvo, John Deere, Case, Hitachi, and most other major heavy equipment brands.
