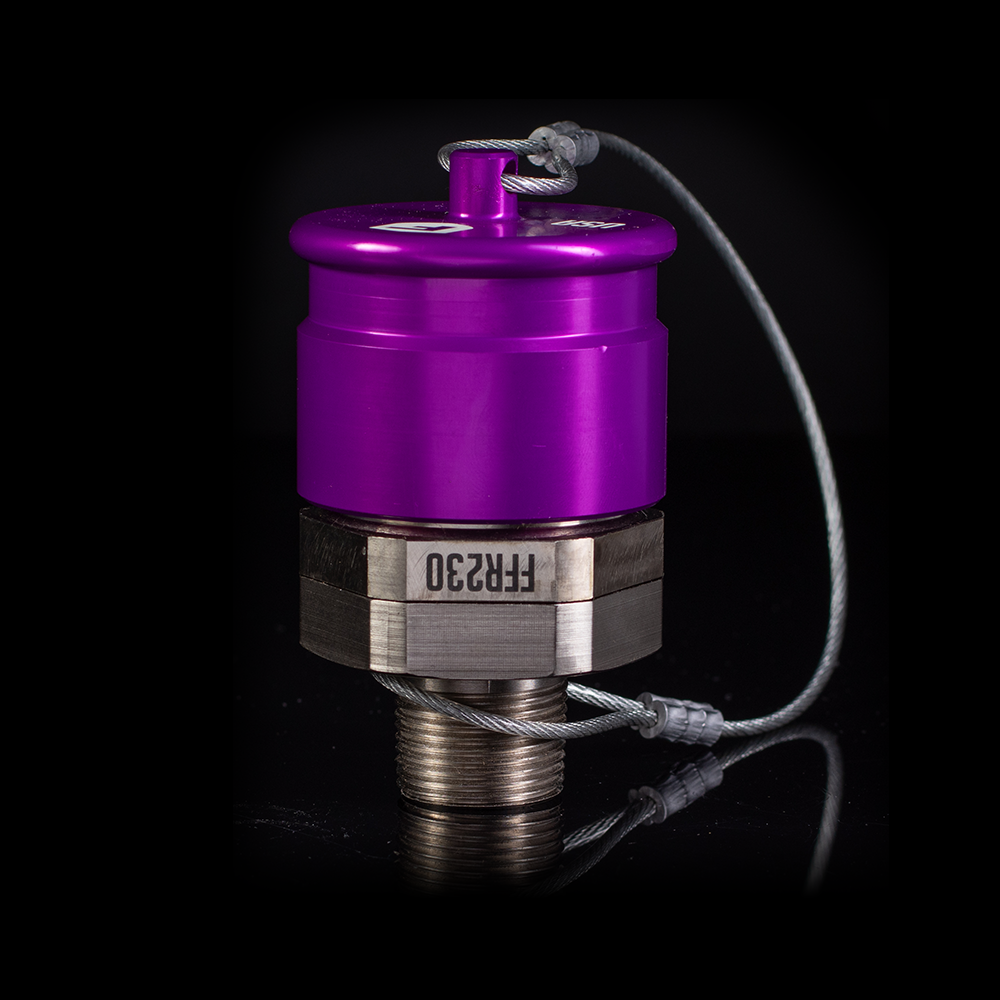

Purple Flat Face Receiver with Cap | FFR230c

The FFR230c is the Purple receiver in Fast Fill Systems Matrix Flat Face fluid coupling system. It pairs exclusively with the matching Purple FFN230 nozzle -- the color coding and physical interlock prevent cross-fluid contamination by making it impossible to connect the wrong nozzle to the wrong service point. Each receiver includes a protective cap and is rated to 1500 PSI for high-pressure fluid service. Installs via 3/4 inch MNPT threads.

• Physically couples only with matching Purple FFN230 nozzle

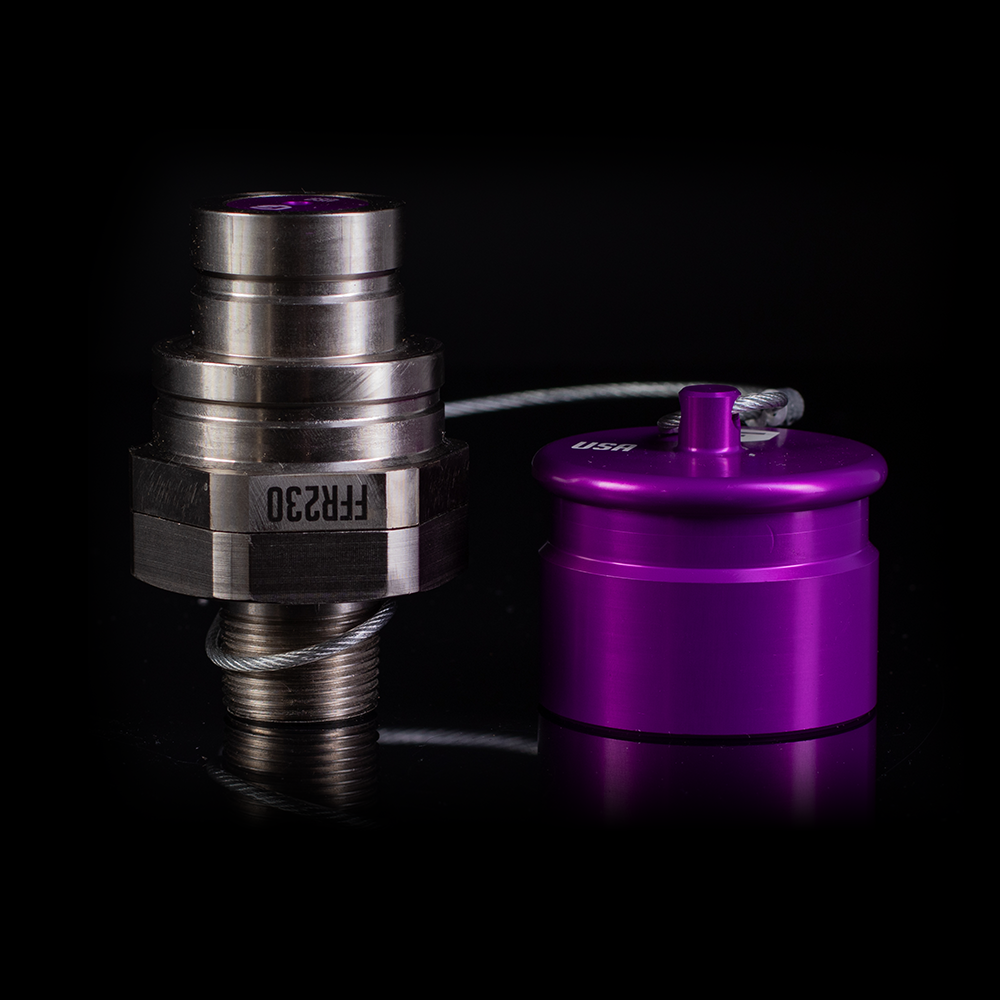

• Protective cap included
• Max Operating Pressure: 1500 PSI (103 BAR)
• Thread: 3/4 inch MNPT
• Ball latching mechanism
• 13 colors available for complete fluid service organization
