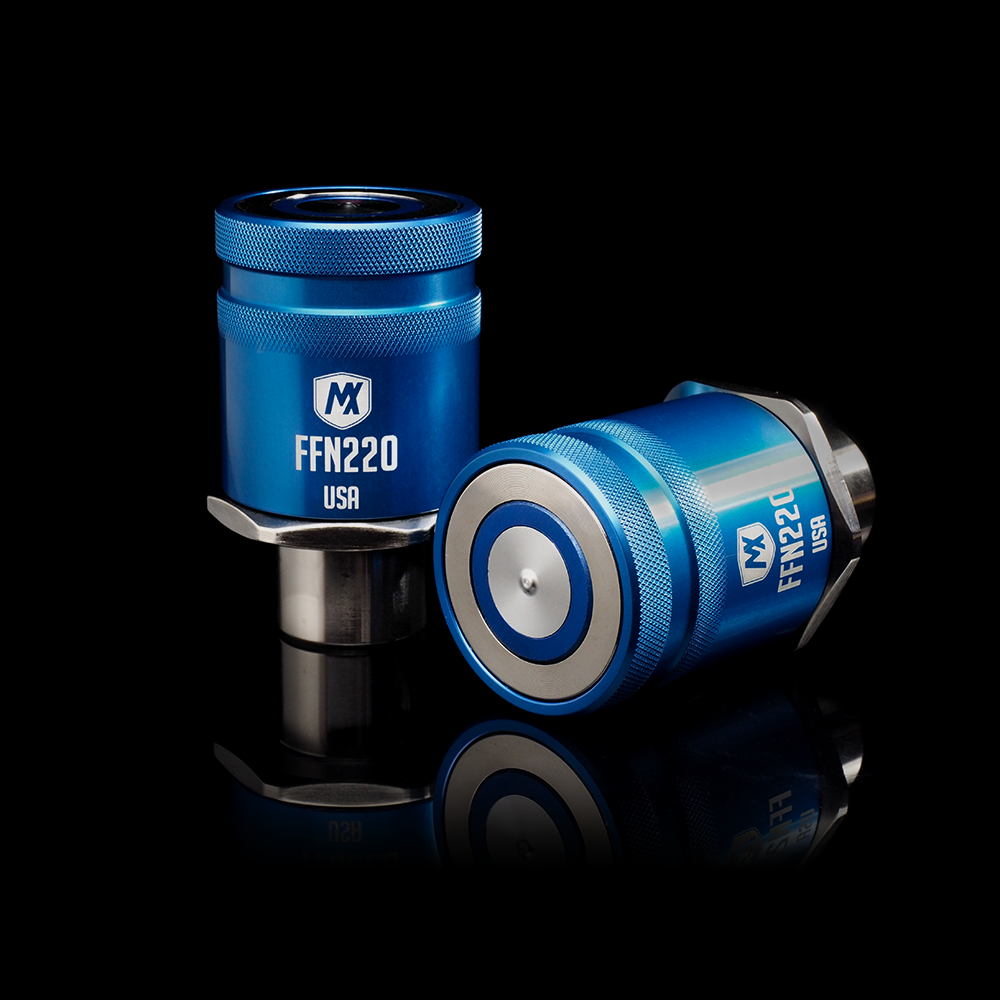

The Flat Face Matrix Nozzle is Fast Fill Systems' color-coded quick-connect nozzle for contamination-free fluid transfer in fleet maintenance applications. The flat face profile makes it simple to wipe the nozzle end clean before coupling, keeping dirt and grit out of the fluid path. Each color is physically designed to connect only to its matching Flat Face Matrix receiver, making fluid type mix-ups impossible during service.
Available in 12 colors -- select yours above to match your existing Matrix fluid service system.
Flat face design -- easy to wipe clean before coupling
Color-coded: physically connects only to the matching receiver of the same color
Max Operating Pressure: 1500 PSI (103 BAR)
Thread: 3/4 inch MNPT
Ball latching mechanism
12 colors available for complete fluid service organization
Part numbers by color: Green FFN210 · Blue FFN220 · Purple FFN230 · Grey FFN240 · Orange FFN250 · Silver FFN255 · Yellow FFN260 · Brown FFN265 · Red FFN270 · Pink FFN275 · Gold FFN280 · Gun Metal FFN285
