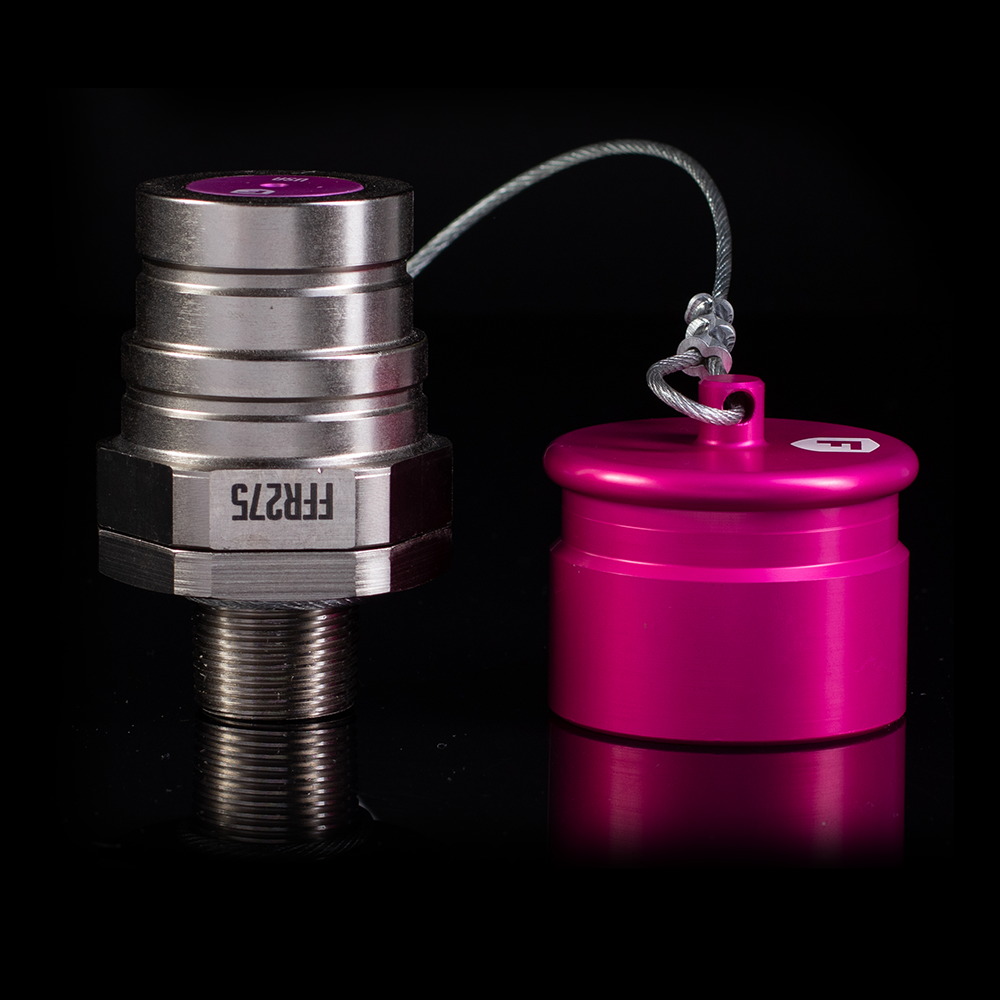

The Flat Face Matrix Receiver is Fast Fill Systems' color-coded quick-connect receiver for contamination-free fluid transfer in fleet maintenance applications. It pairs exclusively with the matching Flat Face Matrix nozzle of the same color -- the color coding and physical interlock prevent cross-fluid contamination by making it impossible to connect the wrong nozzle to the wrong service point. Each receiver includes a protective cap and is rated to 1500 PSI for high-pressure fluid service.
Available in 12 colors -- select yours above to match your existing Matrix fluid service system.
Physically couples only with the matching nozzle of the same color
Protective cap included
Max Operating Pressure: 1500 PSI (103 BAR)
Thread: 3/4 inch MNPT
Ball latching mechanism
12 colors available for complete fluid service organization
Part numbers by color: Green FFR210c · Blue FFR220c · Purple FFR230c · Grey FFR240c · Orange FFR250c · Silver FFR255c · Yellow FFR260c · Brown FFR265c · Red FFR270c · Pink FFR275c · Gold FFR280c · Gun Metal FFR285c
