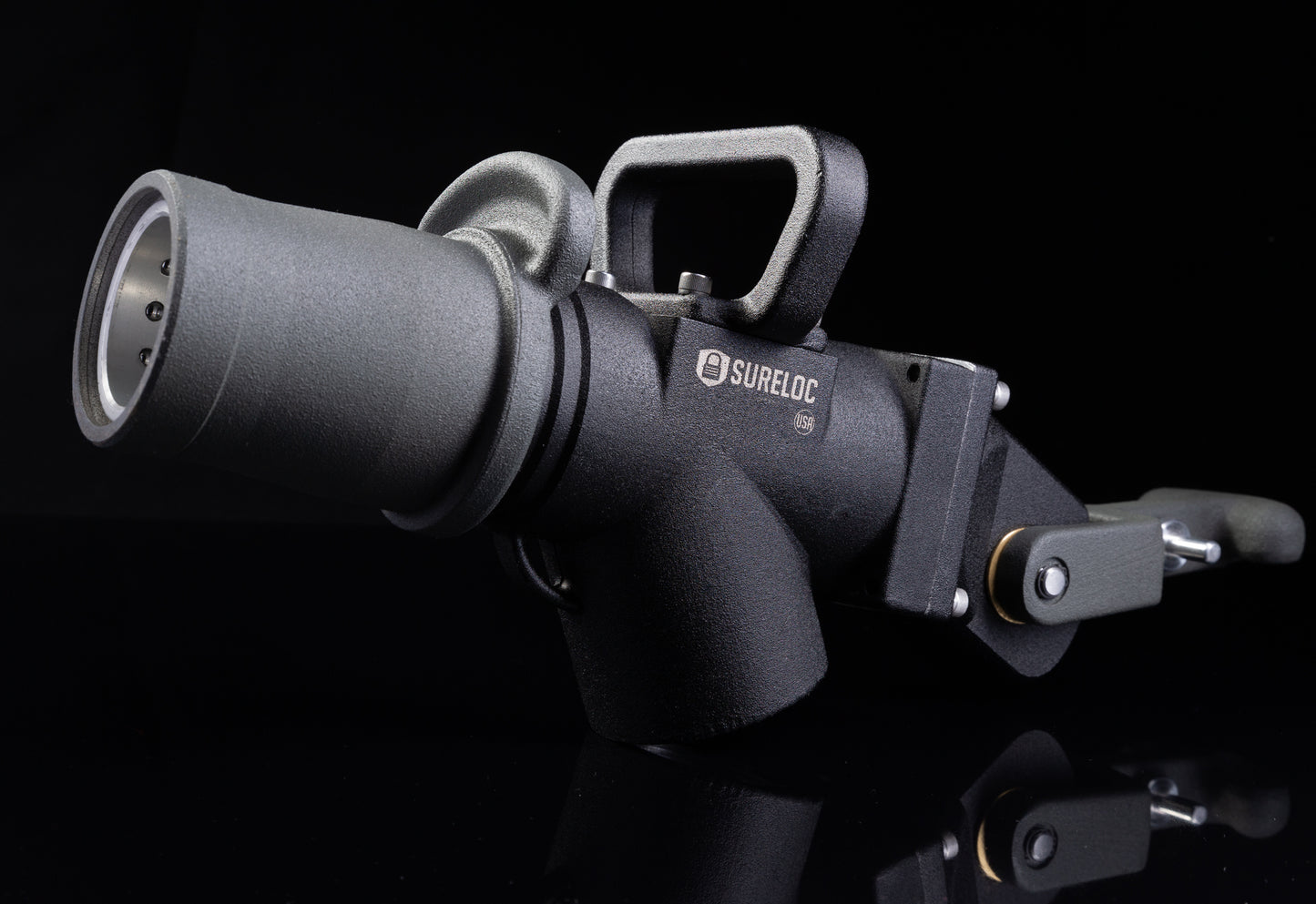

N150PSLp - Piston Surloc Fueling Nozzle

The Sureloc diesel fuel nozzle has proven reliable even in the harshest environments and is customizable to mee specific needs. Its durable, all metal construction and thick wall housing make it optimal for heavy duty operations. The latching mechanism consists of twelve stainless steel ball bearings for a secure connection. Available with two flow rates and inlet options, it is Fast Fill Systems most versatile nozzle.

• 12 stainless steel ball latching mechanism
• thicker walls for increased durability
• 1.5" or 2" inlet options
• Powder coated non-slip finish

Variations

• 2" Fuel Inlet (N150PSLp-2)
• Artic Nozzle (N150PSL-ARTCp)
• 2" High Flow 800LPM (N150PSL800p)

Technical Data:

• Max Operating Pressure:  8.6 Bar / 125 PSI
• Max Flow Rate: 567 LPM / 150 GPM
• Min Flow Rate: 95 LPM / 25 GPM
• Fuel Inlet Threads: 1.5" and 2" Available
• Weight: 3.1 KG / 6.8 LBS

• Latching Mechanism: Ball Bearing
