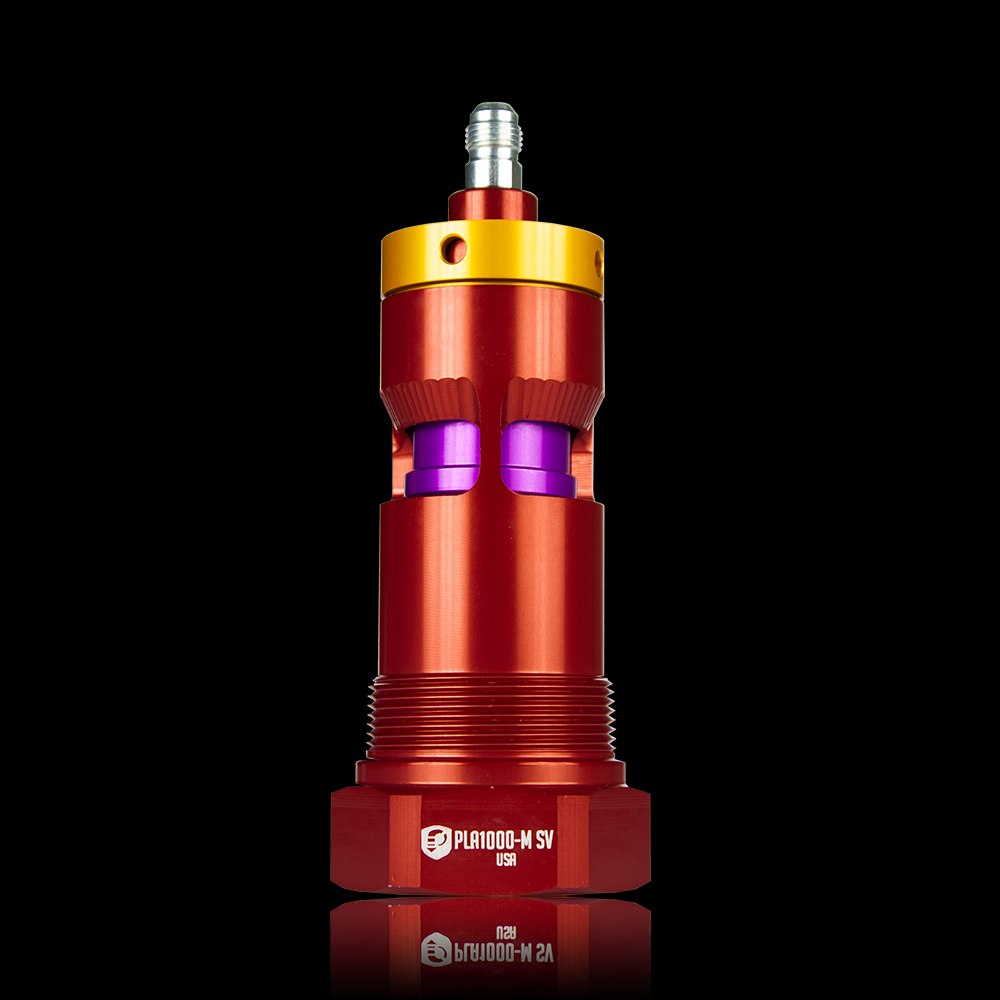

High Flow Pressureless Shut-Off Valve | PLA1000-M SV

The PLA1000-M SV is the high-flow shutoff valve for Fast Fill Systems 1000 LPM pressureless system. It provides the mechanical shutoff action that stops fuel flow at the desired tank level, handling flow rates up to 1000 LPM (264 GPM) without pressurizing the tank. Fits standard 2 inch NPT tank ports and is required for high-volume operations using the N1000PSLP nozzle.

• High-flow operation up to 1000 LPM (264 GPM)
• Zero tank pressure during filling
• Automatic shutoff with adjustable level
• Replace fuel receiver without draining the tank
• 2 inch NPT port fits most tank applications

Technical Specs: Max Operating Pressure: 862 kPa / 125 PSI | Min Operating Pressure: 35 kPa / 5 PSI | Max Flow Rate: 1000 LPM (264 GPM) | Min Flow Rate: 95 LPM (25 GPM) | Nozzle Shutoff Pressure: 7-10 PSI
