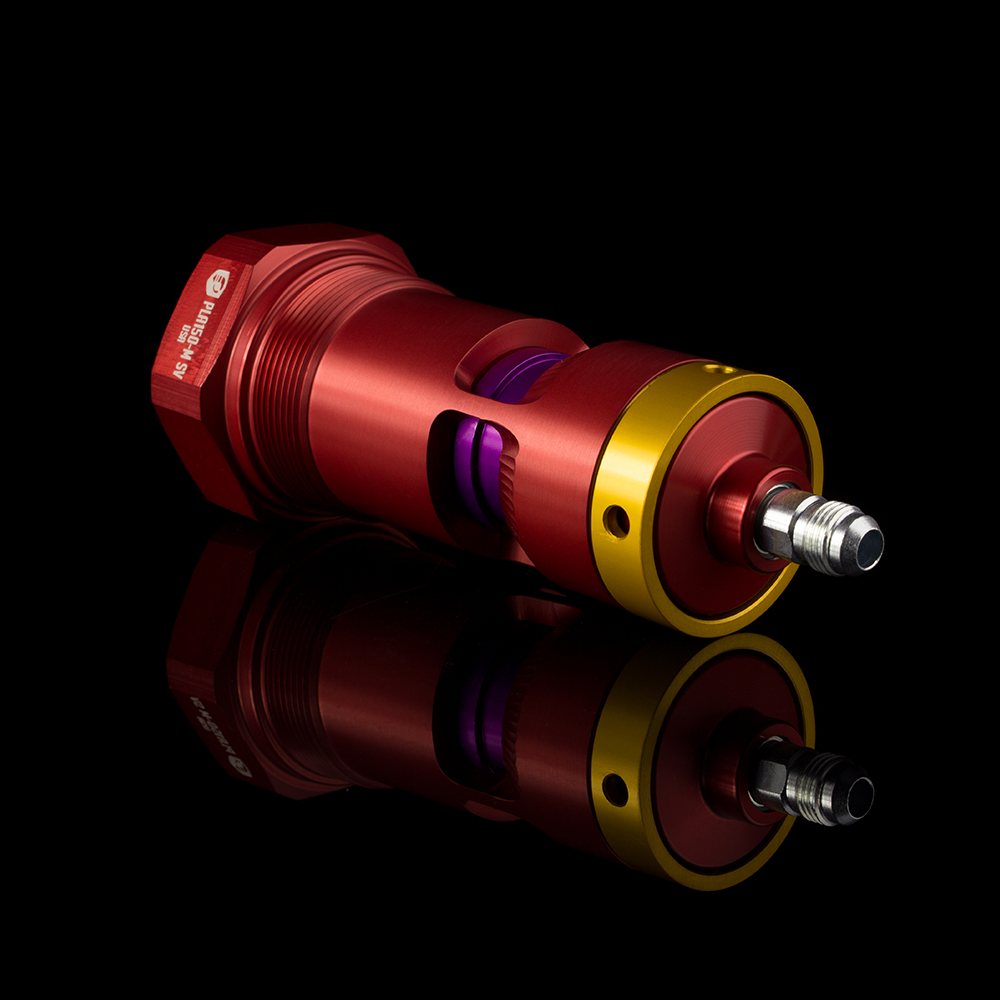

Pressureless Shut-Off Valve | PLA150-M SV

The PLA150-M SV is the shutoff valve component in Fast Fill Systems 150 GPM pressureless system. It provides the mechanical shutoff action that cuts fuel flow once the tank reaches the desired level, operating completely without tank pressure. Sized with a 2 inch NPT port to fit most standard tank applications, it works in tandem with the PLA150-M VLCE level controller and a compatible fuel receiver for a complete pressureless refueling setup.

• Zero tank pressure during filling
• Automatic shutoff with adjustable shutoff level
• Replace fuel receiver without draining the tank
• 2 inch NPT port fits most tank applications
• Rated for 150 GPM (567 LPM) flow

Technical Specs: Max Operating Pressure: 862 kPa / 125 PSI | Min Operating Pressure: 35 kPa / 5 PSI | Max Flow Rate: 150 GPM (568 LPM) | Min Flow Rate: 25 GPM (95 LPM) | Nozzle Shutoff Pressure: 7-10 PSI
