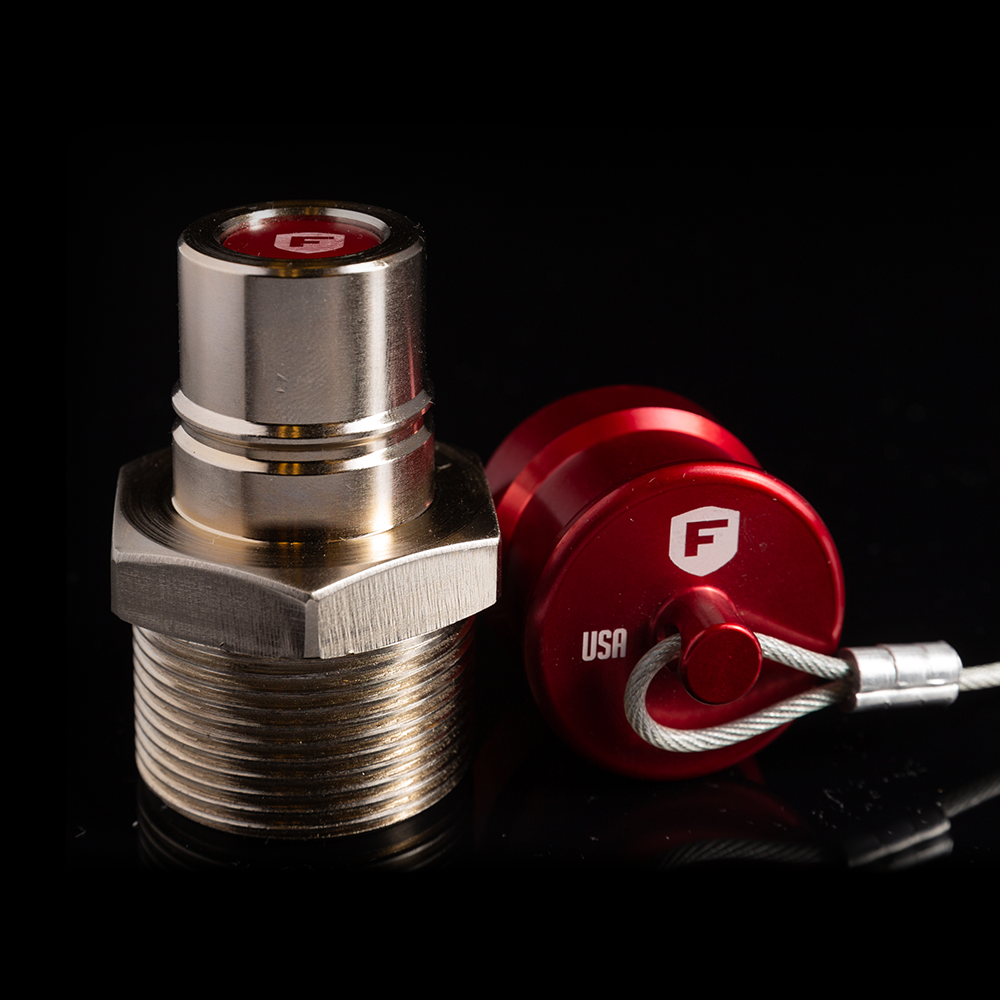

R100Rc Receiver Coupler – #16 ORB Internal / 1-5/8"-12 External, 500 PSI, Nickel-Plated Steel

The R100Rc Receiver Coupler is a heavy-duty, industrial-grade quick connect solution designed for reliable and efficient fluid transfer in demanding heavy equipment applications. Built for durability and long service life, this receiver is constructed from nickel-plated steel to withstand harsh operating environments and continuous field use.

The R100RC features a specialized dual-thread connection design, including a #16 ORB internal thread and a 1-5/8"-12 external thread, making it ideal for specialized crankcase and fluid system integrations where secure, precision-fit connections are required. Fully integrated into the R100 system, it maintains consistent performance across crankcase, coolant, hydraulic, and transmission fluid applications.

Specifications:

• Operating Pressure: 500 PSI (34.5 BAR)
• Burst Pressure: 1500 PSI (103.5 BAR)
• Internal Thread: #16 ORB
• External Thread: 1-5/8"-12
• Latching Mechanism: Pin-style latch
• Material: Nickel-plated steel
